Technical Parameter
For reference only
| Depth Rating |
4000msw (optional 6000msw) |
| Dimensions |
3.6m (length) * 2m (width) * 2m (height) |
| Weight in Air |
4750kg |
| Power |
250hp |
| Load Through-frame Lift |
4000kg |
| Payload |
350kg |
Work-Class ROV
contact us

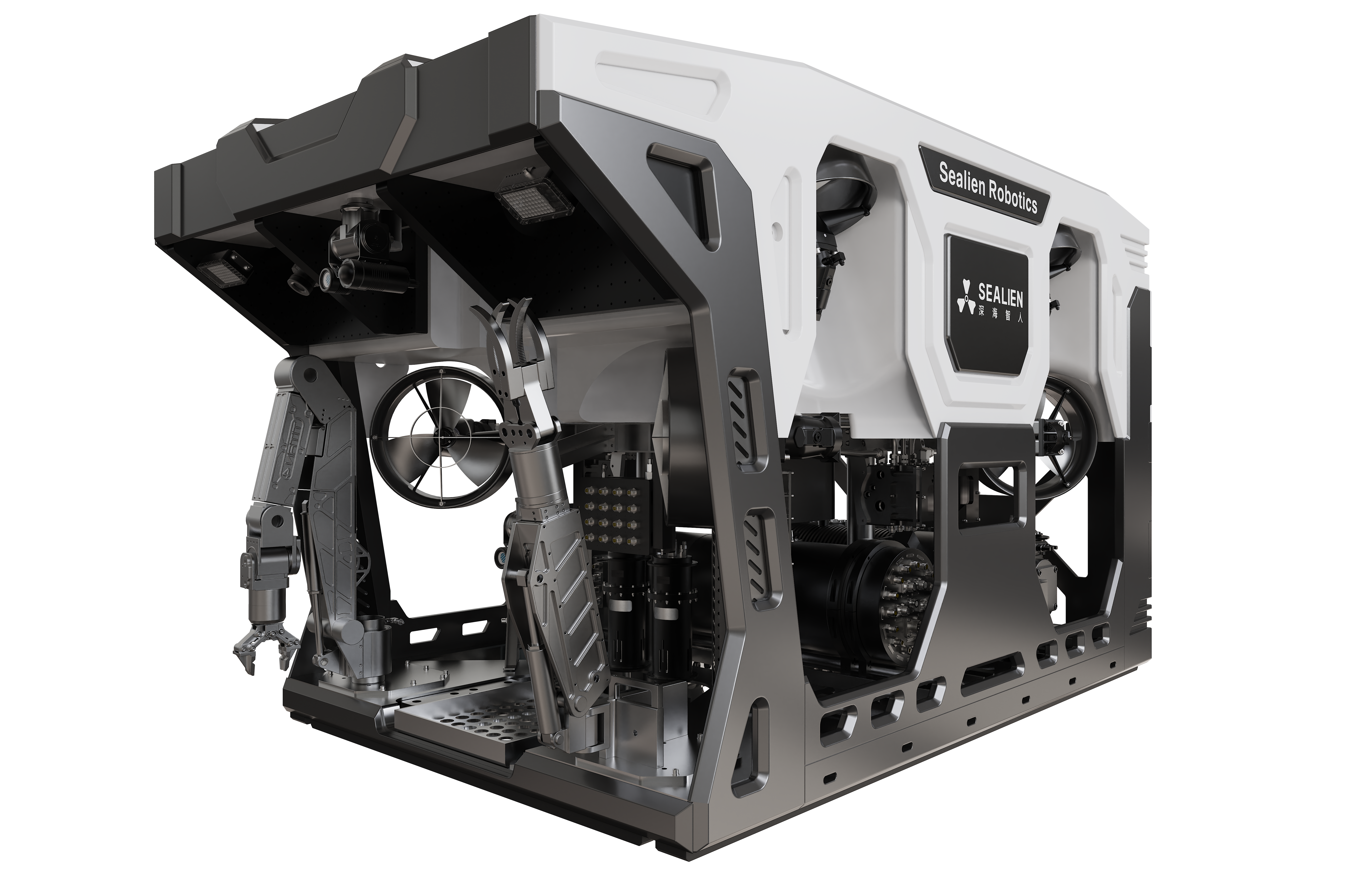

Work-Class ROV
Engineered with a new control architecture and upgraded hardware, our latest new-gen Work-class ROV offers enhanced autonomy and superior compatibility. Its exceptional stability and AI-assisted operation significantly reduce pilot workload, enabling more efficient and precise subsea missions. By adopting more standardized components, the system delivers superior cost-efficiency, quicker service response, and a greener footprint.
Multiple configurations are available, including 100hp, 150hp, 250hp, and 400hp power options, along with depth ratings of 1,500m, 3,000m/4,000m, and 6,000m. Customization support is always available, tailored to meet your unique project needs.
We look forward to delivering not just equipment, but solutions that continually surprise and exceed your expectations.
Functional Features
Vehicle Performance
Heavy work-class ROV systems complete with over 250HP, 350kg payload and integrated high flow tooling valve packs.Optional advanced functions such as automatic operation, route planning, obstacles detection and avoidance, flying management in restricted area, etc.
Tooling Support
Sealien ROVs offer over-12 types of common hydraulic tool connections, optional scientific investigation kit, independent hydraulic pack for hydraulic tooling and rotary rack, etc.
Features
■Support standard and bespoke tooling; ■Intelligent drive assistance system to cope with water current impact; ■VR-assisted vision for pilot’s cabin; ■Highly reliable and stable body platform.
Product Highlights
Class-leading Autonomous Operation System
Identify subsea target via vision and laser, and give real-time feedback to ROV control system to realize auto-operation with manipulators.
Advanced Integrated Positioning System
Equipped with multiple hardware combinations such as GPS, USBL, INS, DVL, to achieve real-time positioning and combined monitoring of ROV location and attitude under different depths.
Advanced Intelligent Navigation System
Arrive at the designated location and adjust attitude autonomously according to the feedback from positioning system; travel autonomously in conformity to pre-set route while detect and avoid obstacles on the way, also capable of auto route planning; support flying management in restricted area.
State-of-art Structure Design Philosophy
Modular, distributed design philosophy enables fast switching of ROV function configuration, swift adjustment of gravity centre, and quick maintenance.
